• EtherHaul-1200FX E-Band 80GHz FDD ODU with Adapter for

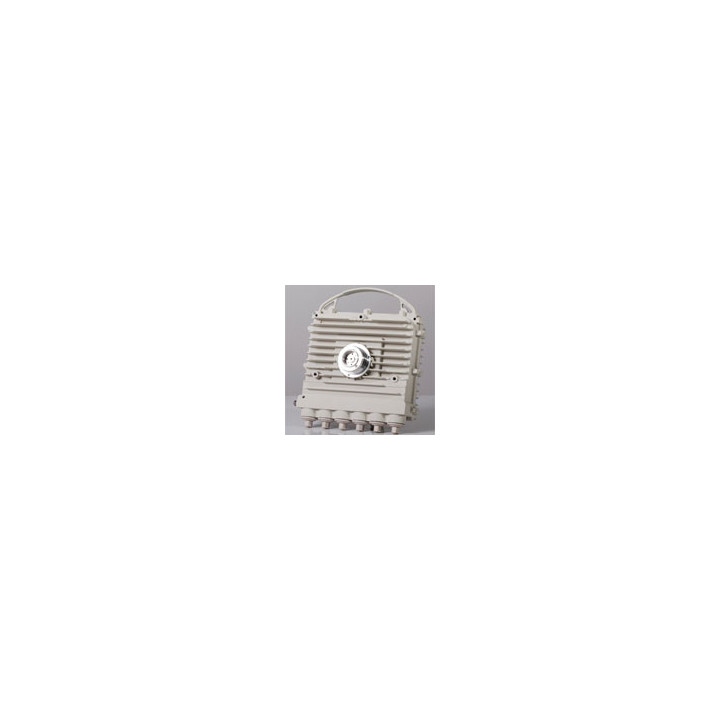

EtherHaul-1200FX E-Band 80GHz FDD ODU with Adapter for External Antenna, Tx Low transmitting at 71-76GHz. 1000Mbps Full Duplex w

Manufacturer Siklu by Ceragon
Part Number EH-1200FX-ODU-L-EXT
Out of stock
MIAMI DOMESTIC
0 in stock
SOLON
0 in stock

Quick look

Product Types: PtP Radio Module
Product Features: Outdoor | Up to 1 Gbps
Frequencies: 80 GHz
$2,768.75
Pricing may be subject to tariffs.
This product is currently out of stock but available for backorder. Lead time may apply.

+1 (440) 498-9510 / sales@winncom.com

Available Monday through Friday, from 8:00 AM to 5:00 PM EST.

EtherHaul[tm]-1200F & EtherHaul[tm]-1200T


Mobile Backhaul & LTE-Ready E-band Radio


The EtherHaul-1200F and EtherHaul-1200T radios provide wireless point-to-point Gigabit Ethernet connectivity. Designed to meet the growing need of service providers for high-capacity, carrier-grade, secure and future-proof mobile backhaul, these radios provide Gigabit throughput, MEF compliant networking and QoS. Enhanced Hitless Adaptive Bandwidth, Coding & Modulation maximizes spectral efficiency and improves link availability.


The EH-1200F/T radios are based on Siklu's revolutionary integrated-silicon technology, which results in an all outdoor, highly reliable, small, light-weight, cost-effective radio that is field-proven in thousands of installations. They support network synchronization, ring protection, and feature, multiple GbE interfaces enabling complex network topologies, such as daisy chain, ring and mesh.


Operating in the uncongested and inexpensively-licensed E-band spectrum, Siklu's radios feature the advantages of both TDD and FDD technologies:


- EH-1200F: operates at 71-76GHz and 81-86GHz, in FDD technology


- EH-1200T: operates at 71-76GHz in TDD technology


Highlights


- Field proven technology


- Reduced TCO and fast ROI


- Integrated silicon solution


- High performance: High throughput, low latency; Fiber-like functionality


- High spectrum efficiency: Uncongested E band spectrum; Hitless adaptive bandwidth coding and modulation for high availability


- Advanced layer-2 features: MEF-compliant QoS; VLAN, Provider Bridge; SLA assurance


- All-outdoor small footprint: Small and light; Quick and easy to install


- AES encryption


- Network synchronization


- Zero touch installation


Typical Applications


* Mobile Backhaul


* Fiber extension


* Business Services Connectivity


* LAN to LAN Connectivity


Data Sheet

Product Types PtP Radio Module
Product Features Outdoor | Up to 1 Gbps
Frequencies 80 GHz
Product Line Siklu Communication
E-commerce relevant Yes
